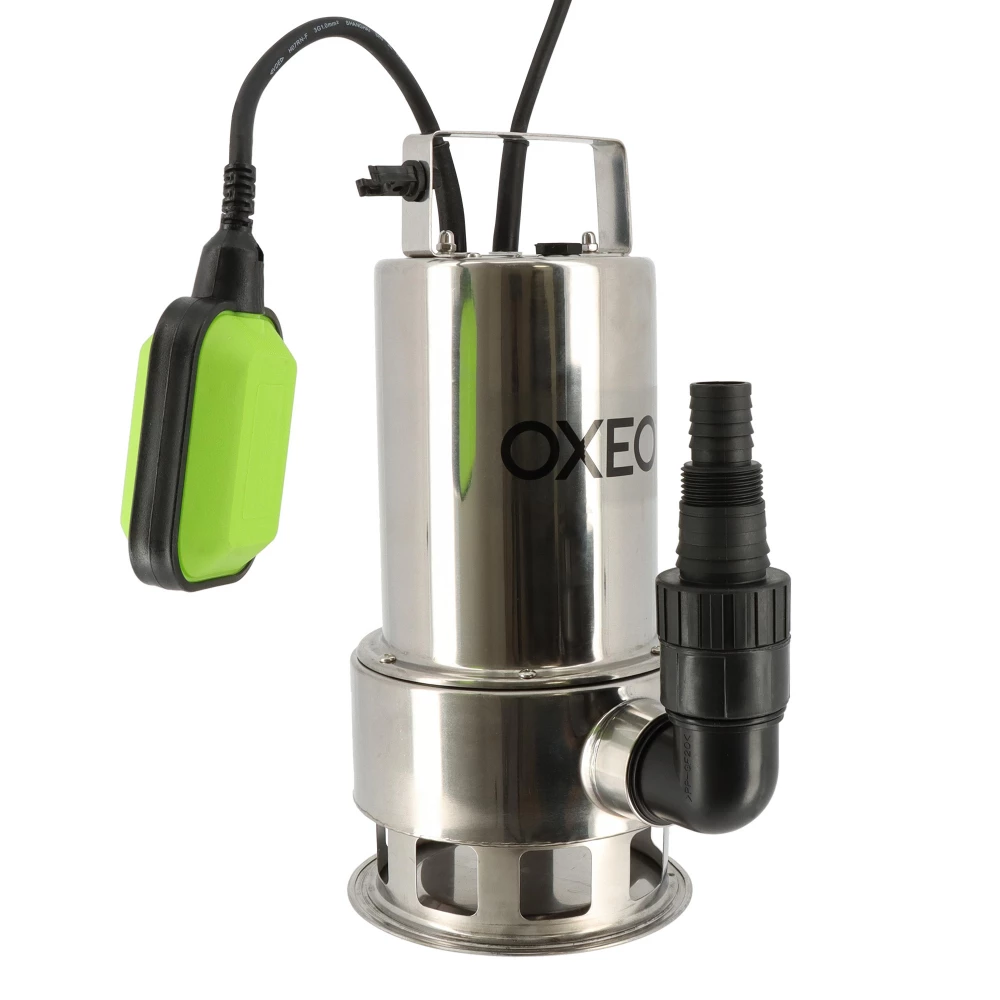

Cellar vacuum pump 1100W
The powerful 1100W cellar vacuum pump is designed to remove water quickly and efficiently from basements, cellars and other areas requiring pumping, such as wells and manholes. Its stainless-steel body ensures maximum corrosion resistance and durability.
With a high power rating of 1100W and a high flow rate, you can evacuate large quantities of water quickly.
It is ideal for evacuating dirty or muddy water from building sites, or for flooding basements or cellars, for example. It can pump solid particles up to 35 mm in size.
The evacuation pump has a robust stainless steel body offering excellent resistance to rust and harsh conditions.
Its IPX8 protection rating means it can be immersed for long periods in complete safety.
The pump is fitted with a switch-type float for regulation, and the contact point is set by adjusting the length of the cable on the cable hook.
It has an automatic triggering system that enables it to operate independently. It starts when the water level rises (40cm) and stops when the water level falls (30cm).
A non-return valve supplied for installation in the elbow reduces pump priming time.
With a 10-metre power cable, the pump offers great flexibility for accessing remote areas.
It requires a minimum space of 40 x 40 x 50 cm for the floating switch to work properly.
DIY advice
The cellar pump can be used to empty a pool and is essential in the event of flooding. It has high power and a high flow rate. Its stainless steel body makes it a robust pump. The option of installing a non-return valve is very practical for reducing priming time.
Technical specifications
Power supply: 230-240V~ 50Hz (alternating current)
Body material: stainless steel
Non-return valve reduces priming time
Power rating: 1100W
Max flow rate: 19 m³/h (316 l/min)
Protection class: IPX8
Electrical protection class: Class I (earthing compulsory)
Max. delivery head : 9,5 m
Max. suction height : 7 m
The float contact point can be adjusted by adjusting the cable length on the cable hook.
Remote float
Switching point of float switch: High point, on: 40cm Low point, off: 30cm
Maximum water temperature: 35°C
Particles accepted: up to 35 mm
Minimum space required: 40 x 40 x 50 cm
Cable length: 10 m
Elbow 1 ½’ male thread (40x49)
Product dimensions: height 35cm, width 25cm, depth 19cm
Connector: 1’ male thread (26x34) or 32 or 25mm diameter hose
Weight: Approx. 5.5 kg
