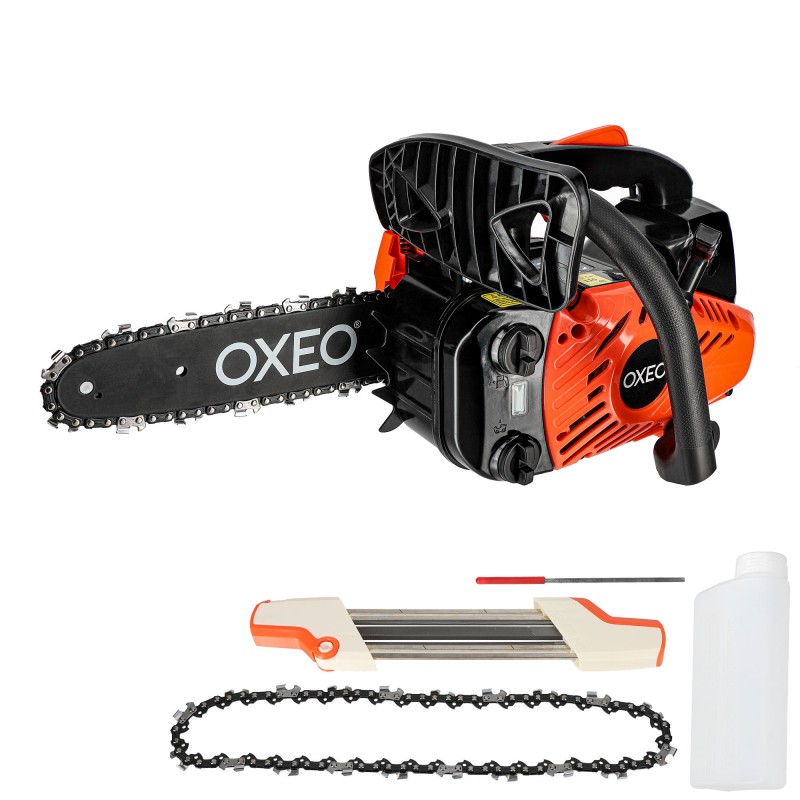

Thermal pruning saw
This compact, lightweight thermal chain saw is ideal for pruning trees. Powered by a 25.4 cm³ 2-stroke engine, it cuts quickly. It comes with a 2in1 file holder for quick and easy chain sharpening.
The pruning chainsaw has a 25.4 cm³ 2-stroke engine and is specially designed for pruning trees and cutting branches.
The 25.4 cm 10-inch chain guide provides a useful cutting length of 25 cm.
It's perfectly balanced for one-handed use, and the stop button is positioned on the top of the handle for a quick stop.
It has a ring for hanging from a harness, so it can be used high up in a tree.
The machine is fitted with a priming pump for easy starting, reducing the effort required to start it up.
For maximum safety during use, the automatic brake stops the chain in the event of kickback.
The pruner comes with an additional chain.
A 2-in-1 file holder is also included with the thermal pruner, for quick, precise sharpening of the chain's teeth and depth limiters. This tool makes it easy to maintain the chain to optimise its cutting performance and extend its lifespan.
The thermal pruner has a 230 ml fuel tank and 160 ml chain lubrication oil tank. To run the combustion engine, you need to mix ordinary SP95 petrol with 2-stroke engine oil (2.5% blend).
The pruner's weight of 3.77kg and compact size make it easy to handle and reduce fatigue during prolonged use.
Gardener's opinion
The ergonomic design and light weight of this pruner make it easy to handle, especially when working at height, making it ideal for routine tree and shrub maintenance. Start-up is made easy by the priming pump. Maintenance is simplified by the built-in sharpening tool.
Technical specifications
2-stroke engine: 25.4 cm³ cubic capacity
Max. power 0.7kW at 8000 rpm
Max. speed 12000 rpm
Idle speed 3300 rpm
Spark plug: type or L8RTF or L7T or L8TC
Fuel: 40:1 (2.5%) petrol-oil mixture
Up to 20 hours of use 25:1
After 20 hours of use 40:1
Fill the tank to no more than 80% of its capacity
Pruner chain guide 25.4 cm (10 inches) type AP10-40-507P
Pruner chain pitch 9.525mm (pitch 3/8 LP, gauge 1.3 (0.050), 40 carriers, gauge 1.27mm (0.050)’, type .3/8.050.40
Number of sprockets: 40
Drive sprocket: 6 teeth, pitch 9.525mm (.375")
Maximum cutting length of pruner 25 cm
Fuel tank capacity: 230cm3
Chain lubrication oil tank capacity: 160cm3
Automatic brake to stop the chain in the event of kickback.
2-in-1 chain file holder: sharpens the cutting tooth and grinds the depth limiter recess in a single pass
Includes: chain x2 (chain on machine + additional chain) - spanner - mixing canister - spark plug spanner - flathead screwdriver, chain tensioner
Sound pressure level in accordance with EN ISO 22868: LpA 97.4dB(A) uncertainty KpA=3dB(A)
Sound power level in accordance with EN lSO 22868: LWA 107.4dB(A) uncertainty KWA=3dB(A)
Guaranteed sound power level, LwA= 110 dB(A) in accordance with directive 2000/14/EC
Vibrations emitted :
[...]
[...]
[...]
[...]
