chainsaw chain sharpener

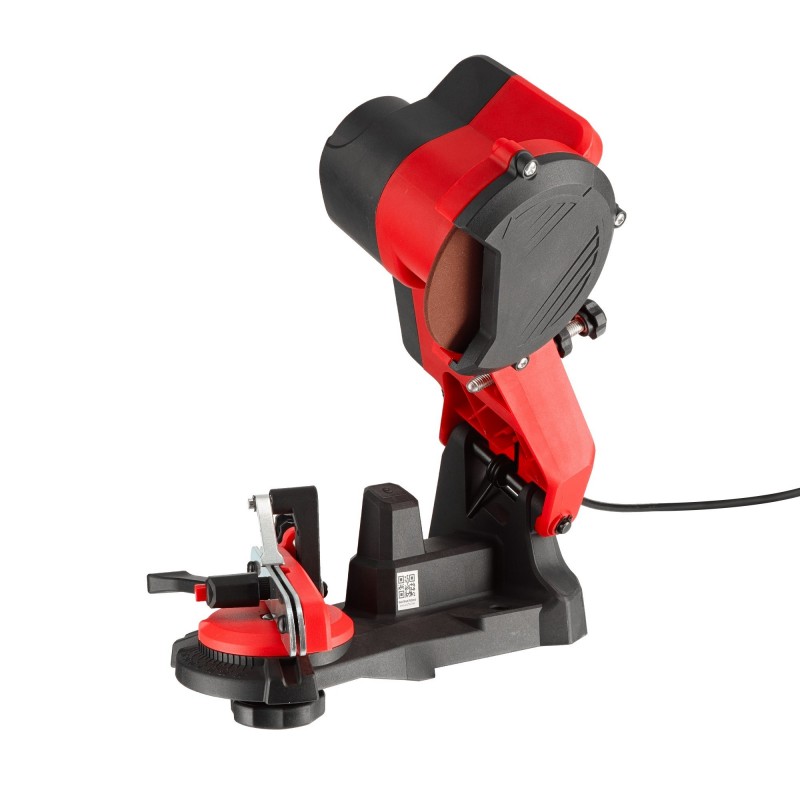

The 85W Power Chainsaw Chain Sharpener is ideal for sharpening 3/8" LP and 1/4" chainsaw chains (size of common chain).

The tool is robust and precise, the sharpening angle is adjusted by a graduated scale.
The chain clamping device works like a clamping vice fast. This allows you to quickly tighten the chain to sharpen one link, then move on to the next link quickly.

The operation of the chainsaw chain sharpener is simple, it is to be fixed or screwed on a established. For example, you can use a clamp to install it on a table, or screw the sharpener directly to your workbench if it has a wooden top.
Once installed on the sharpener, the chain will be suspended.

First, you need to install the chain in the chain guide vise, then adjust the sharpening angle. Most OREGON or STHIL brand chains are 30°. Check this information on the chain or on its packaging.

Once the angle has been set, you can then adjust the rear stopper, the tool has a small moving metal part that comes into contact with in the rear part of the link to be sharpened, this allows precise and regular sharpening. The adjustment must allow the grinding wheel to come and sharpen the cutting area of ​​the link by removing as little material as possible.
The last function to be adjusted is the depth stop, a wheel on the moving part of the motor makes it possible to not go down too much when sharpening, in fact, the grinding wheel must not ignite the bottom of the link.

The sharpener being ready, you can now sharpen the links in series easily, the links are half times with a cut on the right and a cut on the left.
So start with the links with a cut on the right then with those with the cut on the left, this to only modify the sharpening angle only once.

The chainsaw sharpener is supplied with an abrasive wheel already mounted on the machine with a diameter of 108 mm, a bore of 23.2 mm and a thickness of 3.2 mm.
